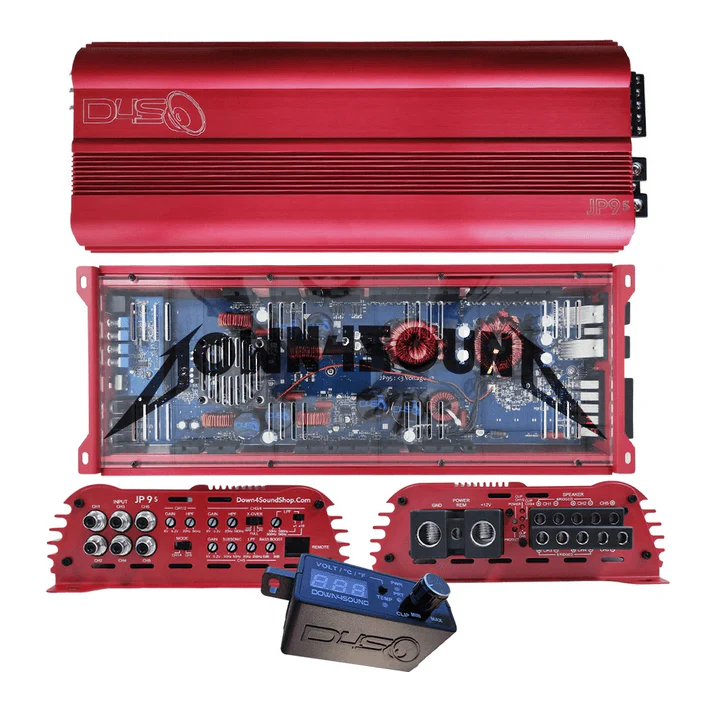

Down4Sound JP 95 AMP: 1500w RMS 5-Channel Amplifier

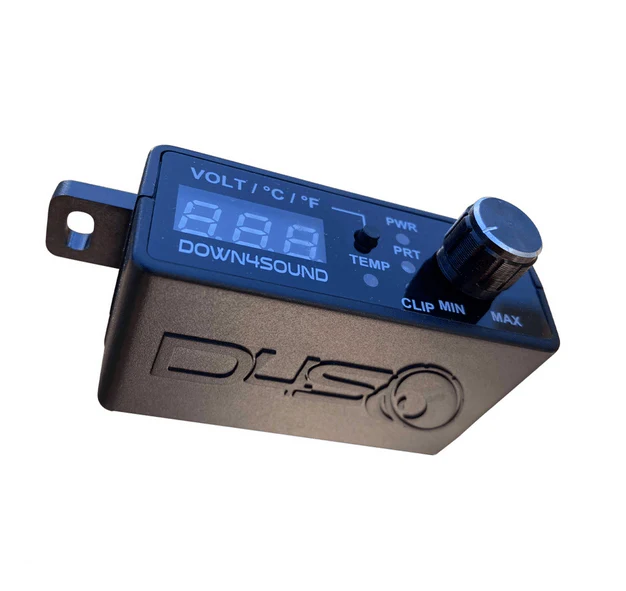

The JP95 might be the most practical 5 channel amplifier ever to hit the market. Inside the JP95 is a fan cooling the output side; now it has plexi black plate, and Bass Knob with voltage and temperature meter.

• RMS power, 1ohm for CH5: 900W x 1
• RMS power, 2ohm: 200W x 4 + 700W x 1
• RMS power, 4ohm: 120W x 4 + 400W x 1
• RMS power, 4ohm Bridged :400W x 2



CH1 & CH2
High Pass Filter: 20Hz - 5KHz

CH3 & CH4
High Pass Filter: 20Hz - 500Hz

Low Pass Filter: 50(500)Hz - 500(5K)Hz
Low pass Filter Multiply: x1, x10

CH5
Subsonic Filter: 10Hz - 50Hz
Low Pass Flter: 35Hz - 250Hz
Bass Boost: 0 - 9dB

Frequency Response: 10Hz - 30KHz for CH1 - CH4, 10Hz - 240Hz for CH5
