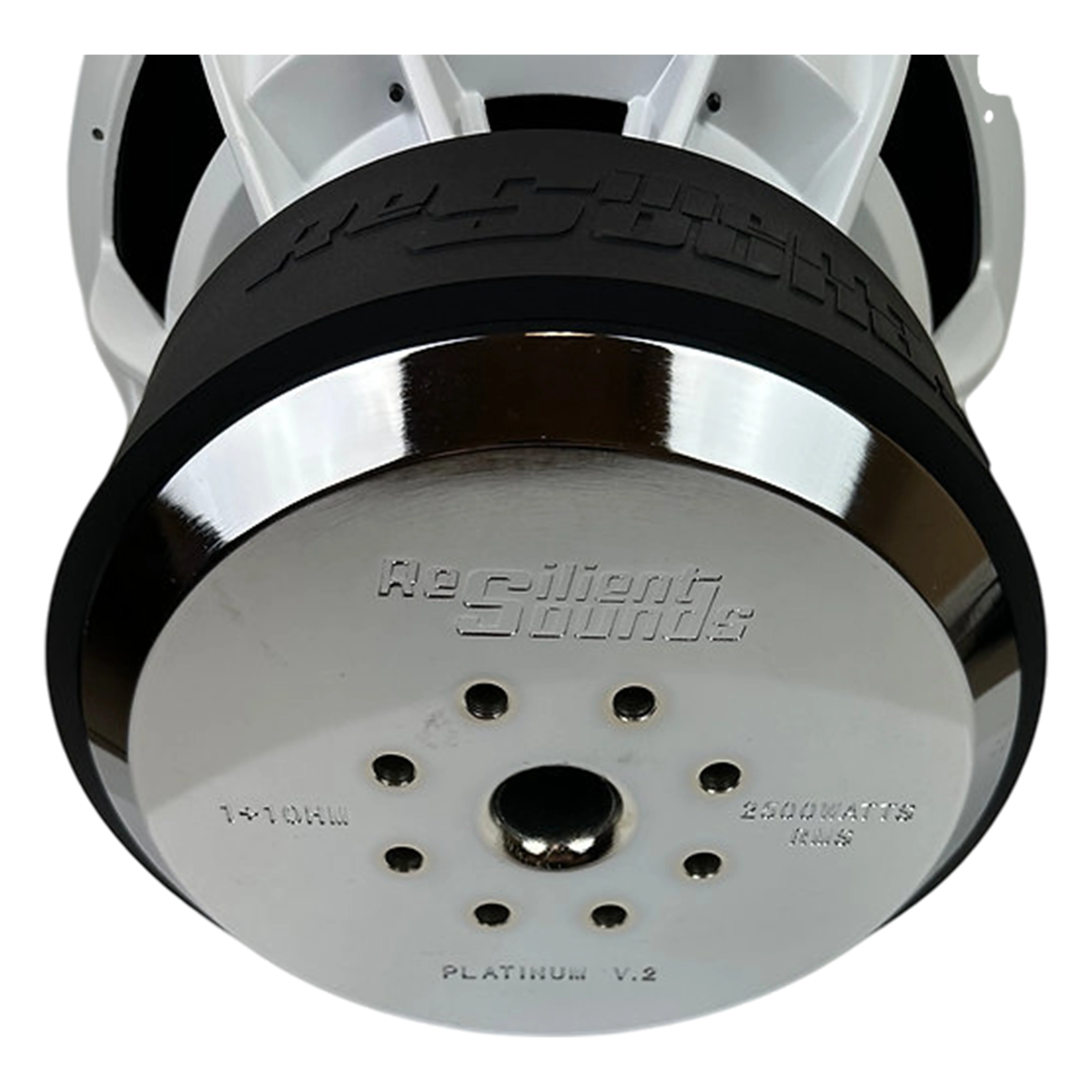

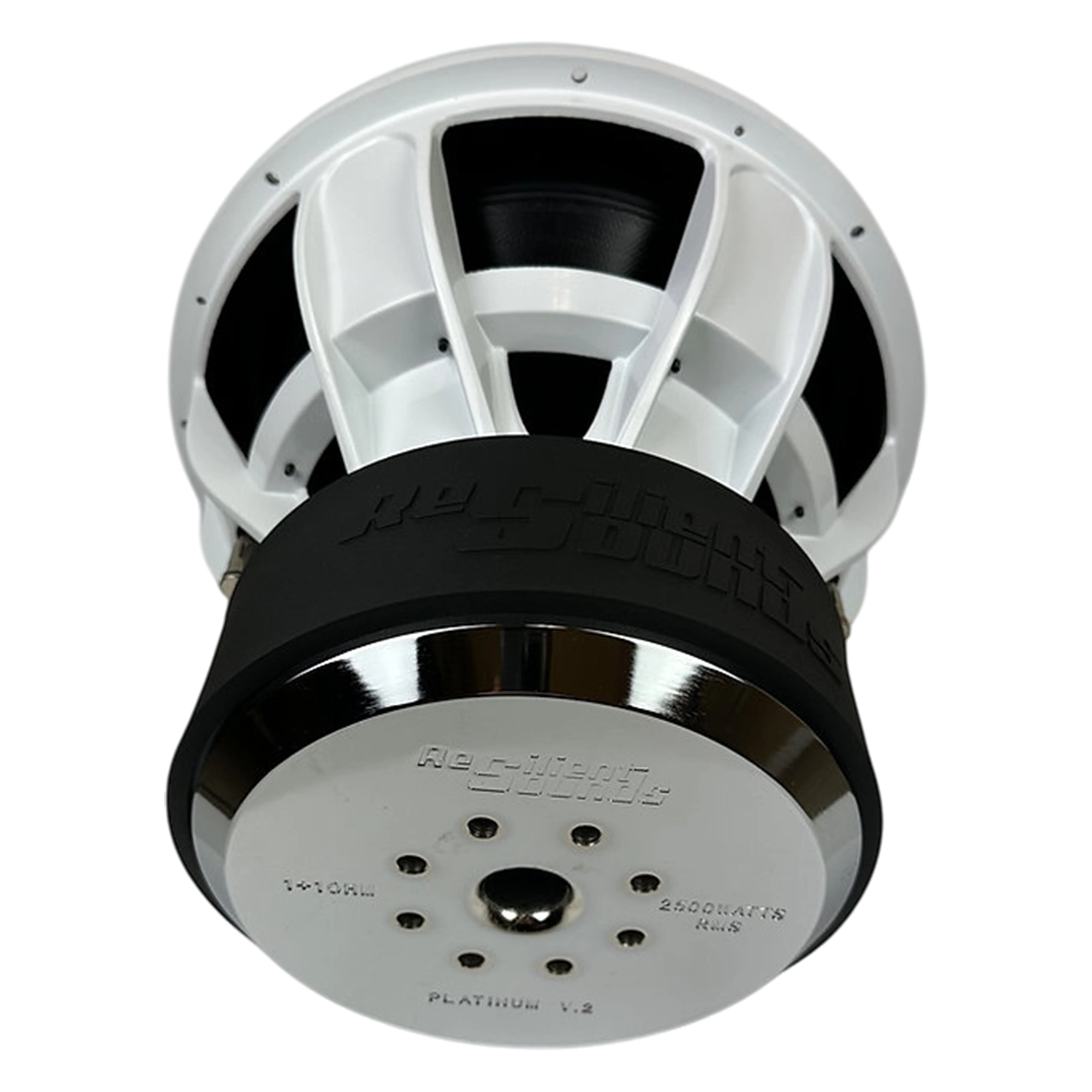

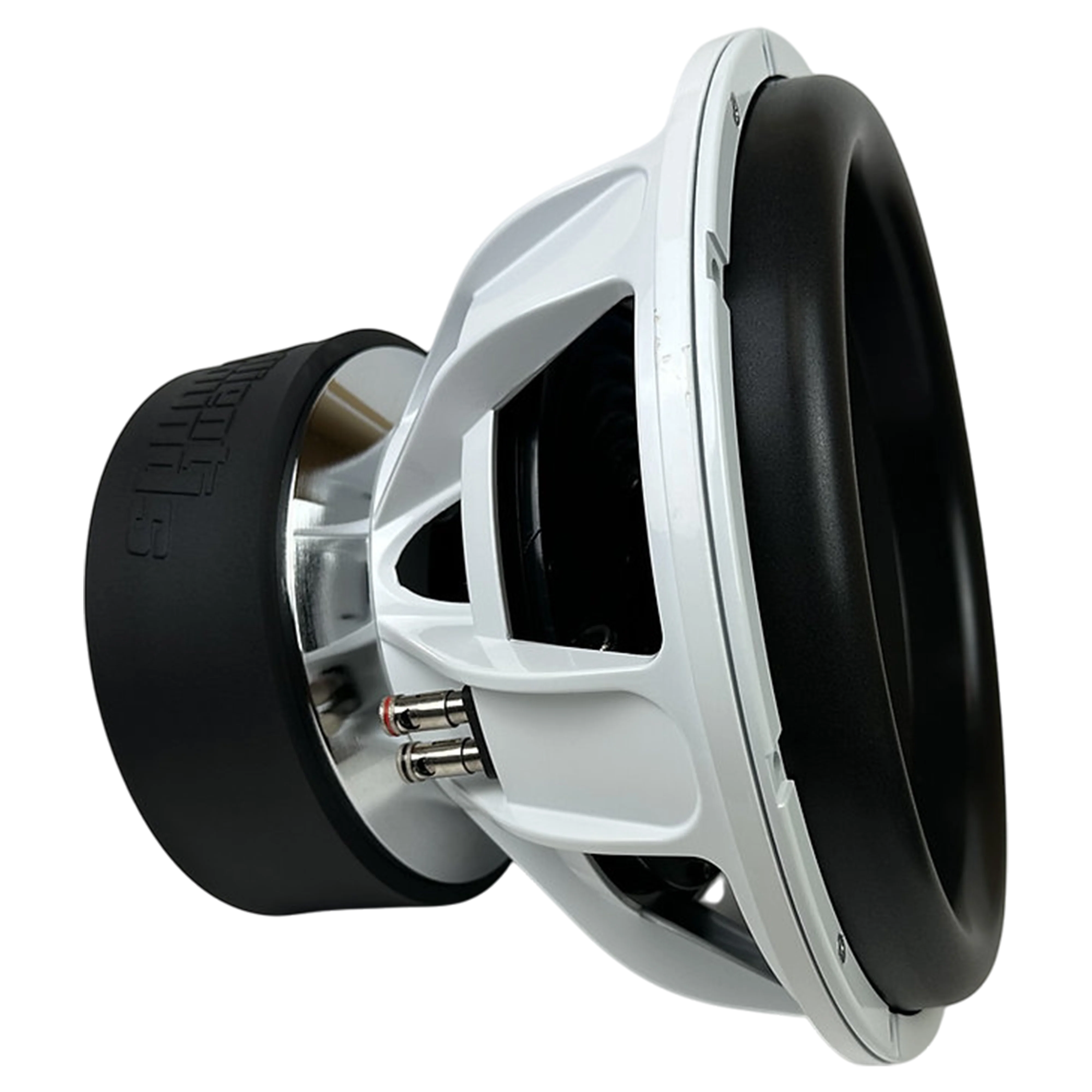

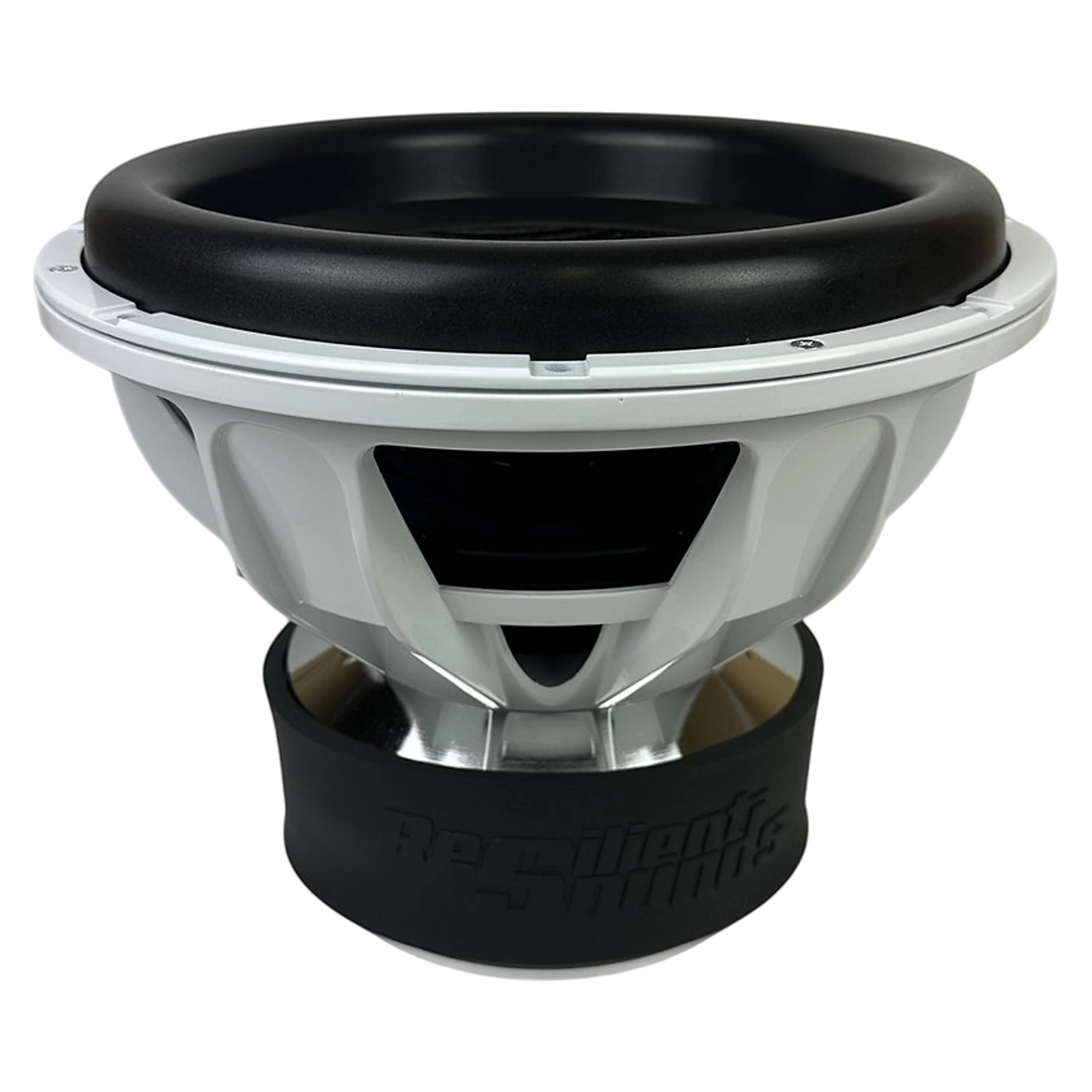

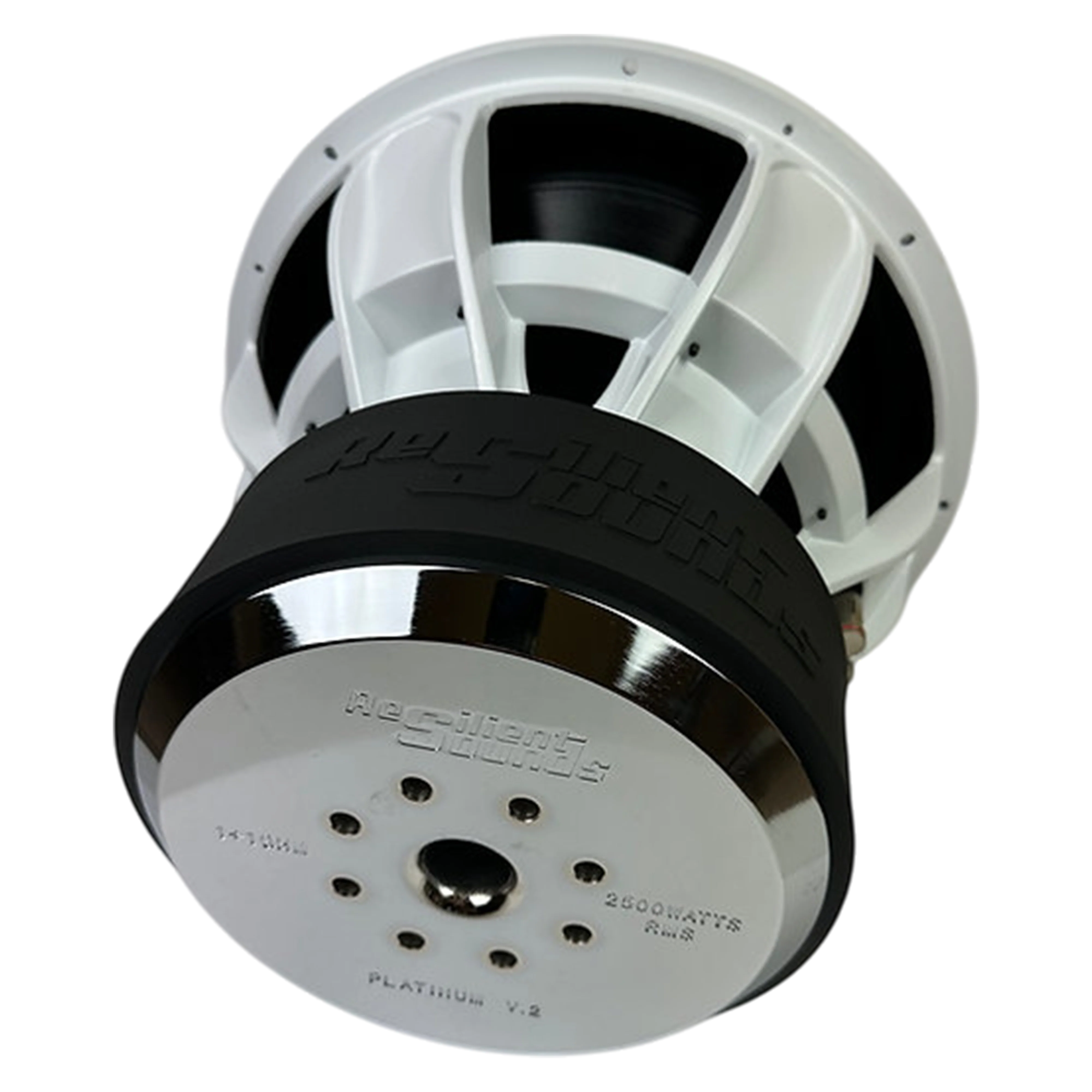

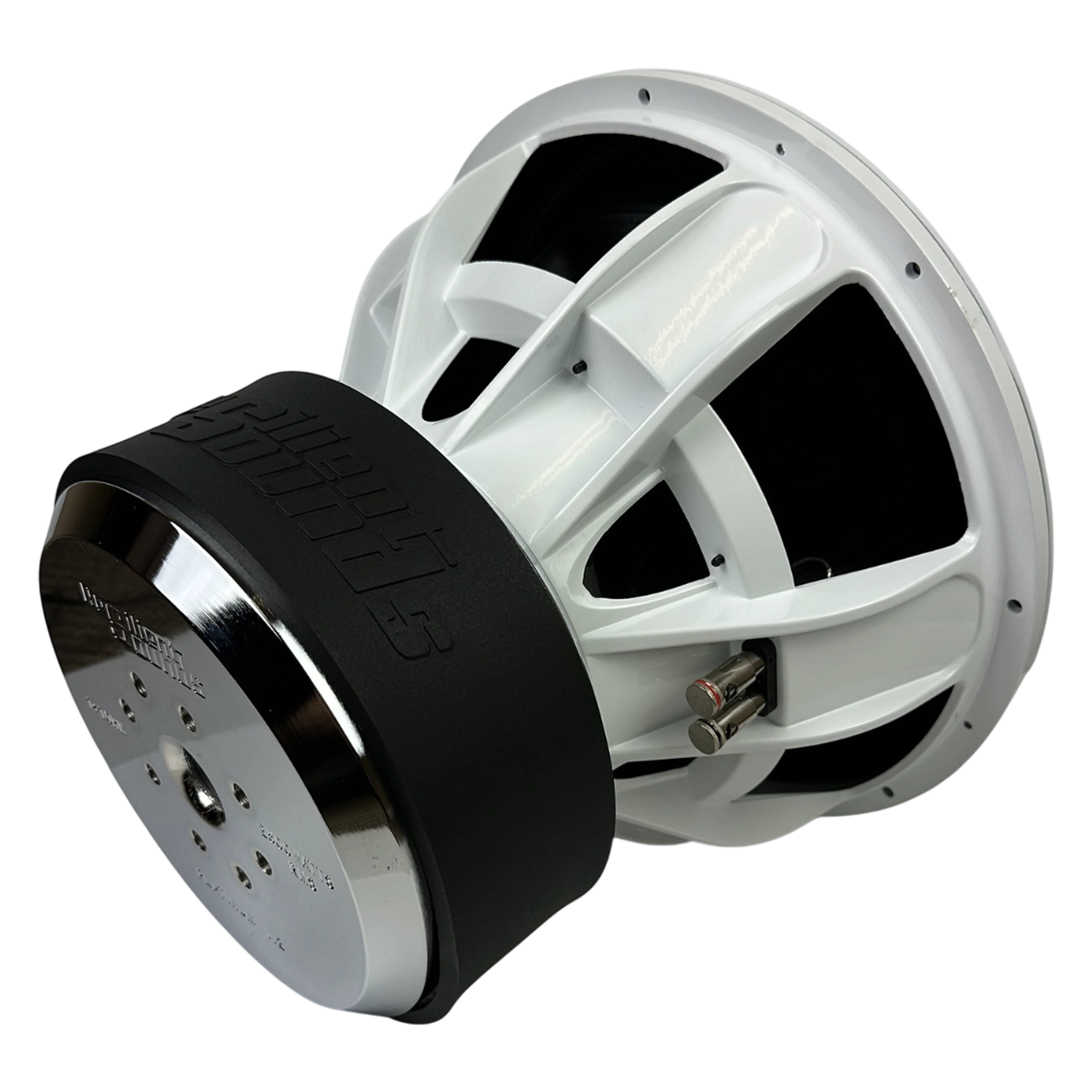

The Ultimate Low-Impedance Subwoofer for Extreme Systems

The Resilient Sounds PLATINUM V2 15" D1 is the choice for serious bass enthusiasts and competitors seeking to run ultra-low impedance loads. Built to handle a conservative 2,500W RMS, this 15-inch driver is optimized for maximum thermal and magnetic performance with its 13% larger motor and 20% longer 3-inch 8-layer voice coil. The Dual 1 Ohm impedance allows for wiring in parallel to achieve an extremely low 0.5 Ohm final load, unlocking the full potential of 0.5 Ohm-stable competition-grade amplifiers. The combination of 35mm XMAX, carbon fiber cone, and heavy-duty suspension ensures this subwoofer moves huge amounts of air with unmatched authority and control.



TECHNICAL SPECIFICATIONS

Specification	Detail
Model	Platinum 15 V2
Nominal Impedance	Dual 1 Ohm (D1)
RMS Power Handling (Conservative)	2,500 Watts
Peak Power Handling	5,000 Watts
Maximum Excursion (XMAX)	35MM
Voice Coil	3-inch 8 Layer (20% Longer than V1)
Motor Structure	13% Larger Motor, XL Triple Stacked
Cone / Dust Cap	Carbon Fiber
Surround	New High Roll Tooled Surround
Spider / Leads	10" Spider Pack with Insulated Dual Leads
Frame/Basket	Cast Aluminum Frame



RECOMMENDED ENCLOSURE SPECIFICATIONS

Internal Volume (Cubic Ft)	2.5 - 3.5 CU FT
Tuning Frequency	28 - 33 HERTZ
Port Area	12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT
Mounting Depth	11.25 INCHES
Cutout Diameter	14.2363 INCHES
Displacement	0.28 CUBIC FT
