Kicker 44L7S122 12" 1500W Dual-2-Ohm L7 Car Audio Subwoofer/Sub Solobaric L7S

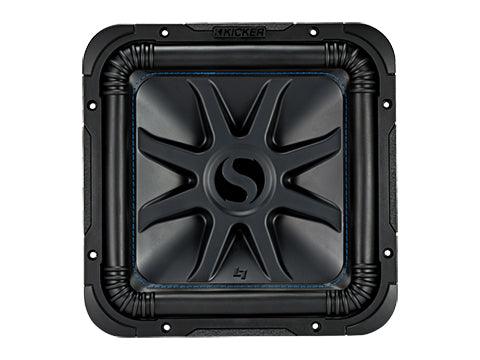

12" Solo-Baric L7S 2 Ohm
The KICKER® Solo-Baric® L7S™ has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity.
Square Matters
The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.
Features:
- Dual Two-Ohm Voice Coils
- Injection-Molded Polypropylene Cone
- Patented Corner Ribs Minimize Distortion
- SoloKon™ 360-Degree Back Bracing
- Ribbed Santoprene Surround With Blue Surround Stitching
- UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
- Thick Tinsel Leads
- Large Ceramic Magnet
- Cast Aluminum Basket
- Satin-Nickel Plated, Spring-Loaded Speaker Terminals
Fresh Water Bump
The materials used in the L7S series makes them a perfect choice for adding some bass to your boat.*
*Extreme durability in fresh-water applications only (not recommended for salt water)
| Thiele/Small Parameters |
 Â 44L7S122Â T/S Parameters PDF |
| Size (IN.,CM) |
| 12, 30.5 |
| Impedance (OHMS) |
| 2 DVC |
| Max Rec Amplifier Power (WATTS PEAK/RMS)* |
| 1500/750 |
| Sensitivity (dB 1w/1m) |
| 88.6 |
| Frequency Response (Hz) |
| 20-100 |
| Mounting Depth (IN.,CM) |
| 6-11/16, 16.9 |
| Mounting Cutout, Square (IN.,CM) |
| 11-1/16, 28.1 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| 1.25, 35.4 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| 2.0, 56.64 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.75, 49.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 3.25, 92.1 |
| What's in the box? |
| one 12-inch subwoofer, one owner's manual, two stickers |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
