AUDIO ACE DIAMOND CB10 10" MID-RANGE CAR AUDIO SPEAKER
Product Overview: Pro Audio Power for Your Vehicle

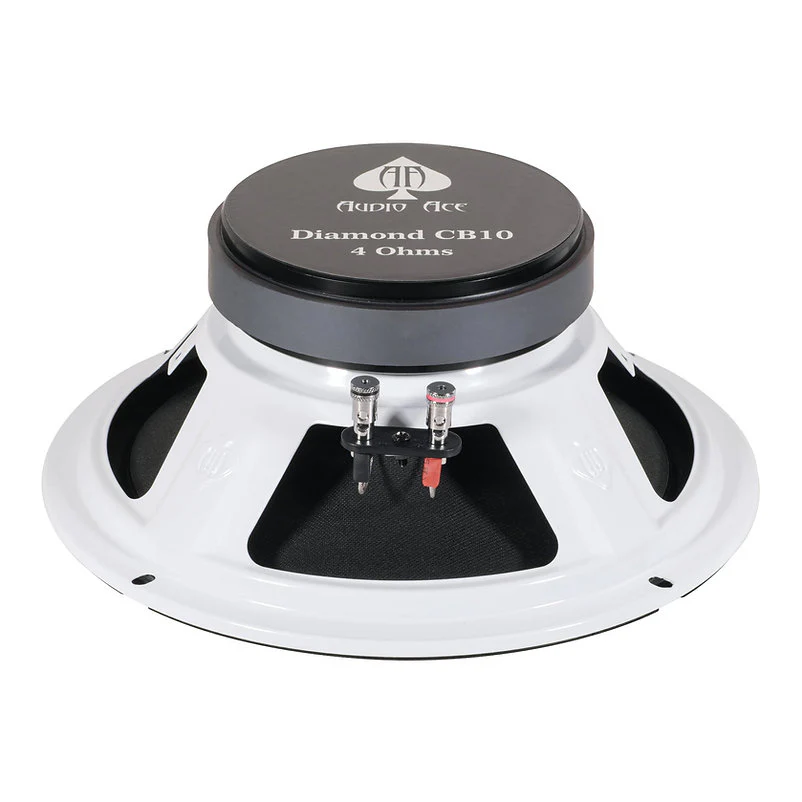

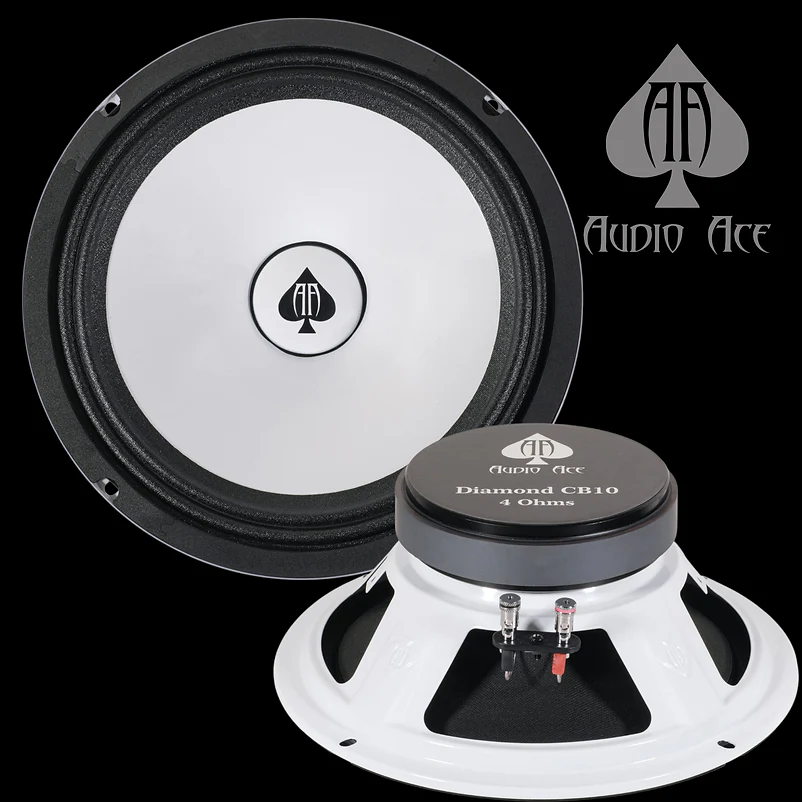

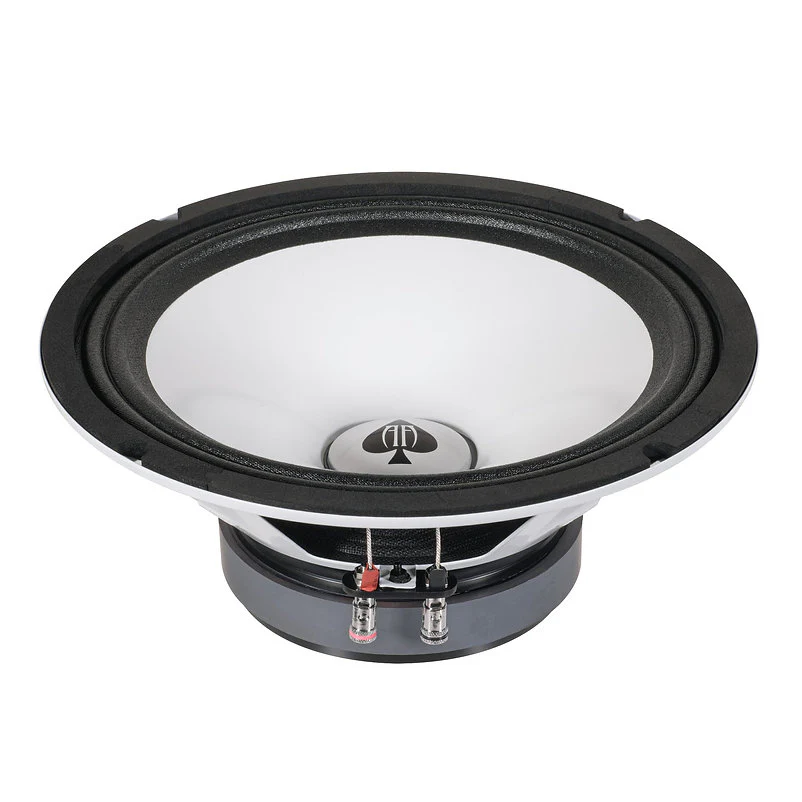

The Audio Ace Diamond CB10 mid-range speaker is specifically engineered to bridge the gap between powerful Pro Audio sound and the constraints of a car audio environment. Sold as a pair, the CB10 is designed for high efficiency and volume, capable of handling 250W RMS and boasting a high 95 dB sensitivity to play louder than most competitors in its class. Featuring a custom-tooled basket with the Audio Ace logo, a 2-inch voice coil, and a robust 40 oz motor, this 10-inch loudspeaker delivers a wide and clear frequency response from 80 Hz to 12 kHz. It is the ideal choice for enthusiasts looking for a dynamic and dominant mid-high frequency presence.
Ā
AUDIO ACE DIAMOND CB10 MID RANGE SPECIFICATIONS (PAIR) |
|
|---|---|
| Size | 10 Inches |
| RMS Power Handling | 250 Watts |
| Nominal Impedance | 4 Ohm |
| Voice Coil | 2 Inch |
| Motor Weight | 40 oz |
| Sensitivity | 95 dB |
| Frequency Response | 80 - 12k Hz |
| Maximum Excursion (Xmax) | 2.5 |
| Mounting Depth | 3.89 inches |

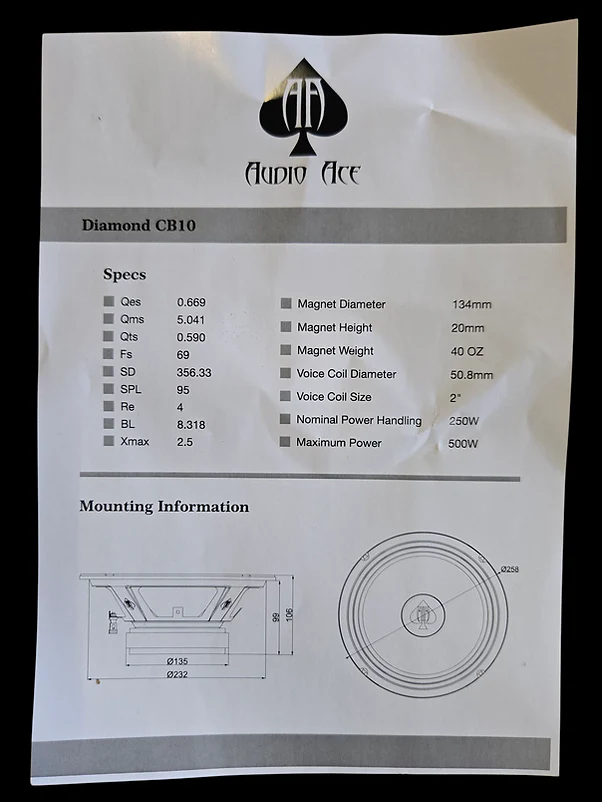

| THIELE-SMALL PARAMETERS | |
| Electrical Q (Qes) | 0.669 |
| Mechanical Q (Qms) | 5.041 |
| Total Q (Qts) | 0.590 |
| Resonance Frequency (Fs) | 69 Hz |
| Effective Piston Area (SD) | 356.33 |
| DC Resistance (Re) | 4 Ohms |
| BL Factor (BL) | 8.318 |
