Description

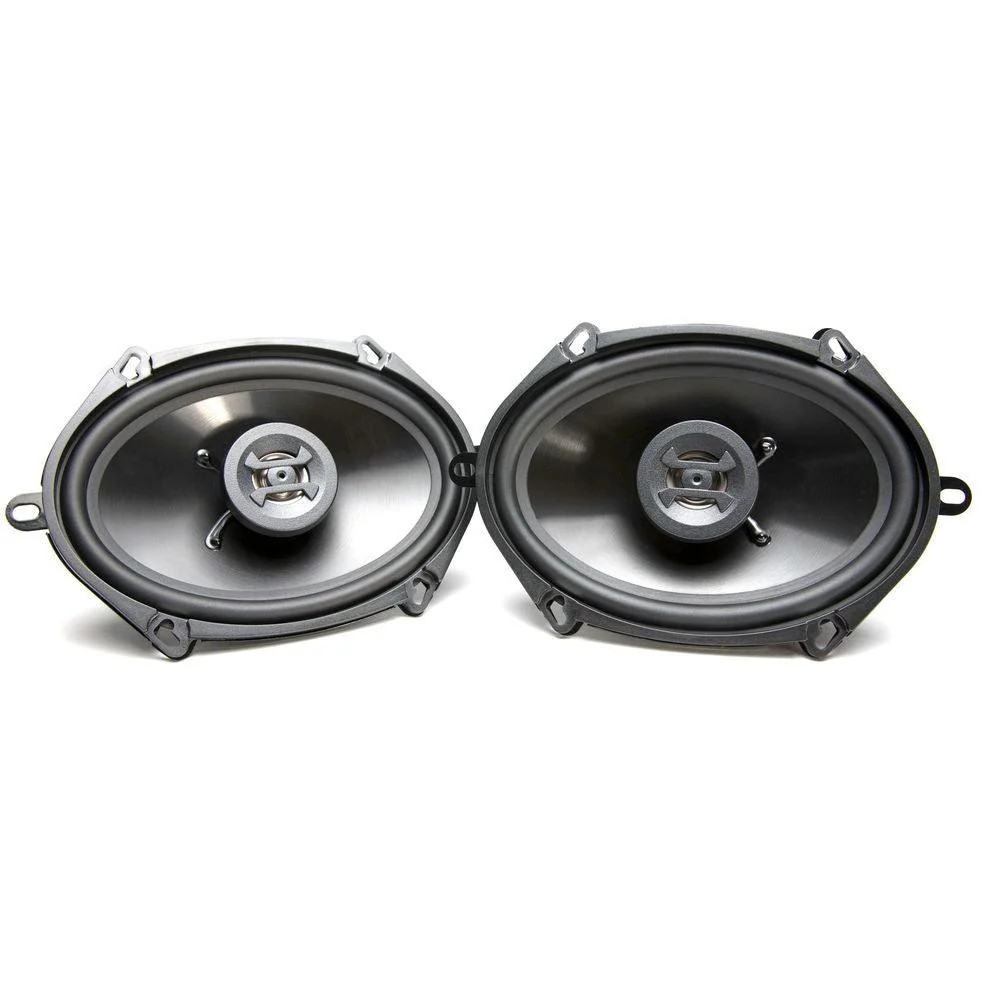

Hifonics Zeus 5 x 7 / 6 x 8 inch 2 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair) - includes 6x8 inch adapter plate (No Grills)

• RMS POWER HANDLING (CEA426B)
  90
• MAXX POWER
  250
• SPEAKER IMPEDANCE
  4 Ω
• FREQUENCY RESPONSE +/- 3DB
  46Hz-20kHz
• SENSITIVITY (1 WATT/1 METER)
  88 db
• CROSSOVER POINT
  4 khz
• CROSSOVER SLOPE
  12dB
• MOUNTING DIAMETER/CUT OUT
  5.67
• OUTSIDE DIAMETER
  8.60 x 5.56 No Grill
• MOUNTING DEPTH/CHASSIS DEPTH
  2.13
• DIMENSIONS
  12.75 x 9.63 x 3.69 in
• WEIGHT
  3.4 lbs
• TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
• SURROUND:Rubber Moisture Resistant Rubber Surround with high Mid-Bass Impact
• CONE:Alpha-Cellulose Cones Light weight for speed and very rigid for deep bass
• SURROUND / CONE COUPLING:High Temperature Adhesive Special adhesive is chosen to create a permanent bond between the cone and the surround
• TINSEL LEADS:Braided Highly conductive while remain flexible during high power applications
• VOICE COIL:Pure Copper Creates strong magnetic field with a very thin extrusion
• VOICE COIL FORMER:Kapton Lightweight and efficiently dissipates heat
• SPIDER:Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
• COOLING SYSTEM: Overcoil Air is exchanged over the voice coil through the spider
• CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
• FRAME TYPE: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
• MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application
• CONNECTORS: Spade Use spade connectors or solder direct for the best connection
• GRILLS: No Typically used in factory dash replacement locations where grills are not required
• TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
• TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
• TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
