Optimized Low-Impedance Bass Power

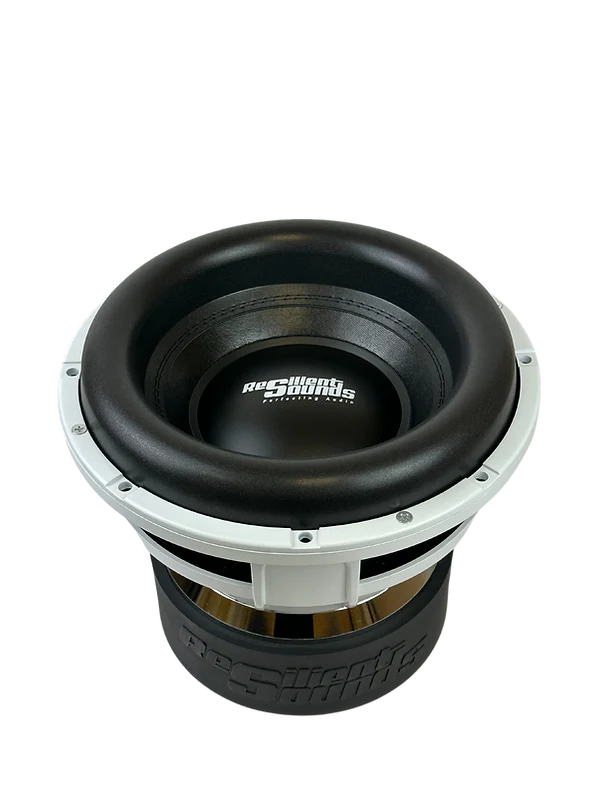

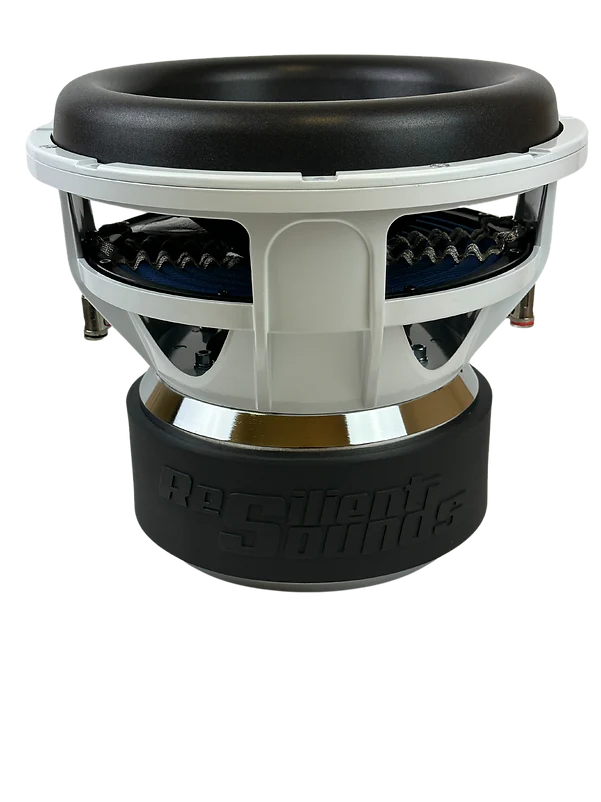

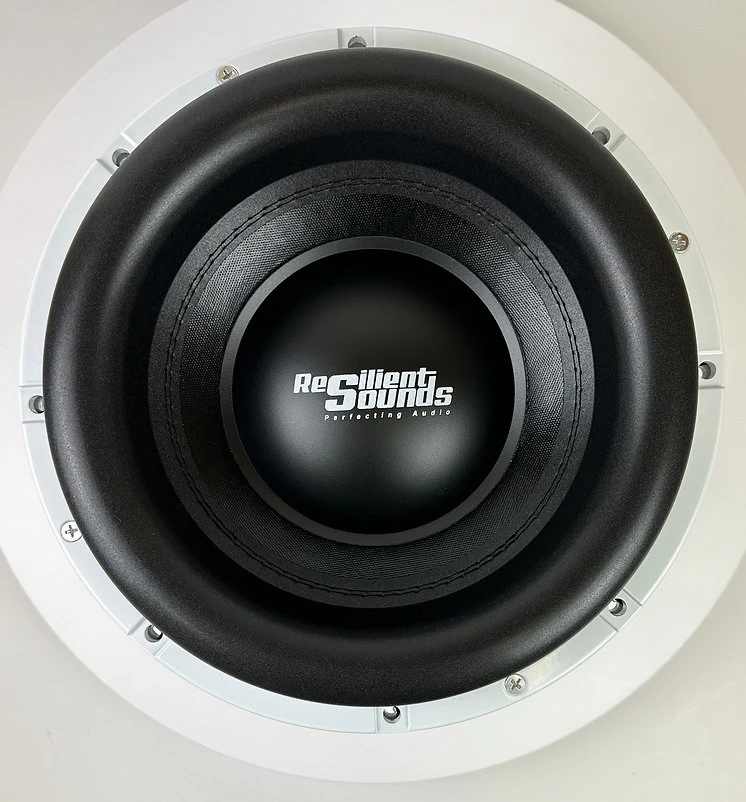

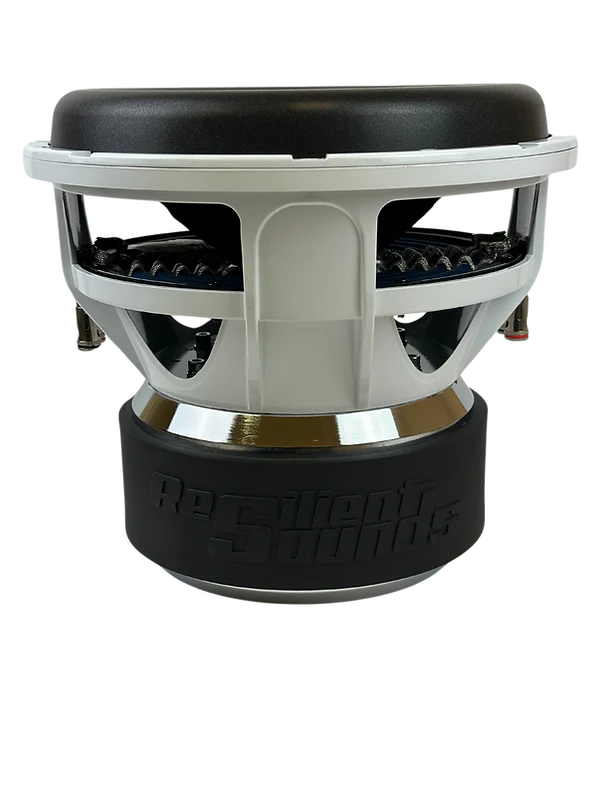

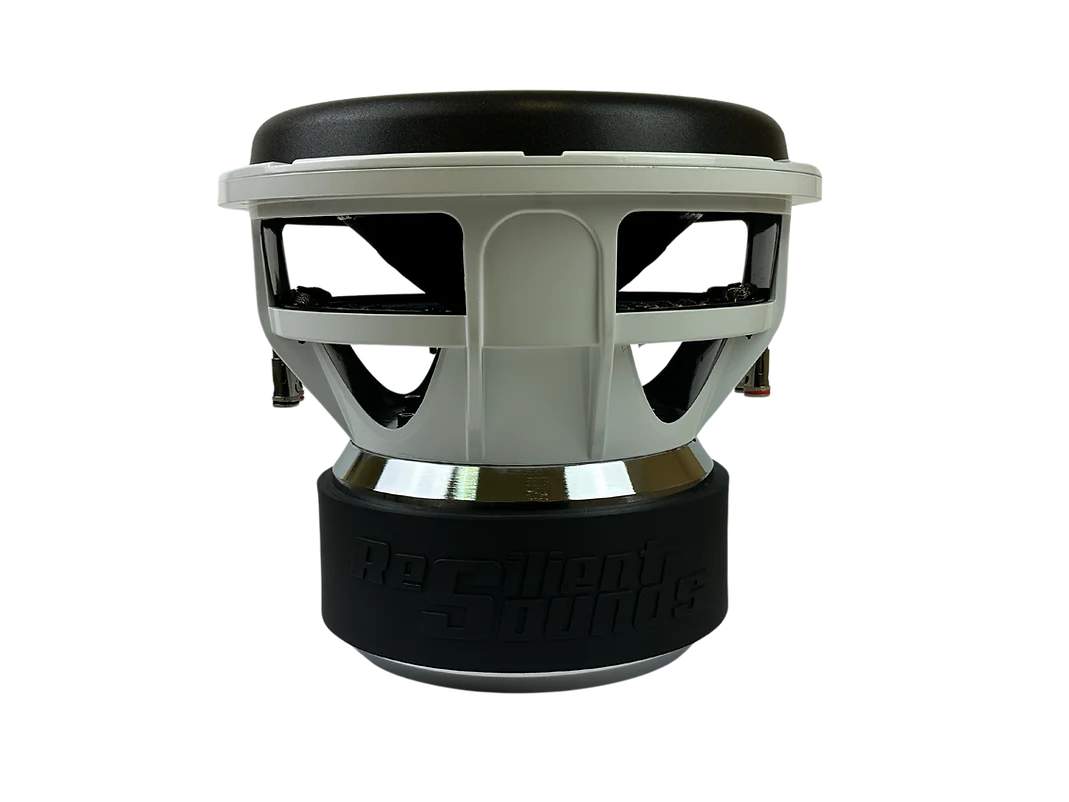

The Resilient Sounds GOLD V2 12" D2 is the premier choice for maximizing output when paired with 1 Ohm-stable amplifiers. This 12-inch powerhouse maintains the conservative 1500W RMS rating and features the same high-performance components: a 3-inch 4-layer voice coil, a 220mm triple-stack motor, and a huge 31mm XMAX. The Dual 2 Ohm voice coil configuration is ideal for achieving a final load of 1 Ohm (single amplifier to multiple subs) or 4 Ohms (single subwoofer), making it a high-efficiency solution for competitive and daily driven systems alike.

TECHNICAL SPECIFICATIONS

Specification	Detail
Model	Gold V2 12"
Nominal Impedance	Dual 2 Ohm (D2)
RMS Power Handling (Conservative)	1500 Watts
Maximum Excursion (XMAX)	31MM

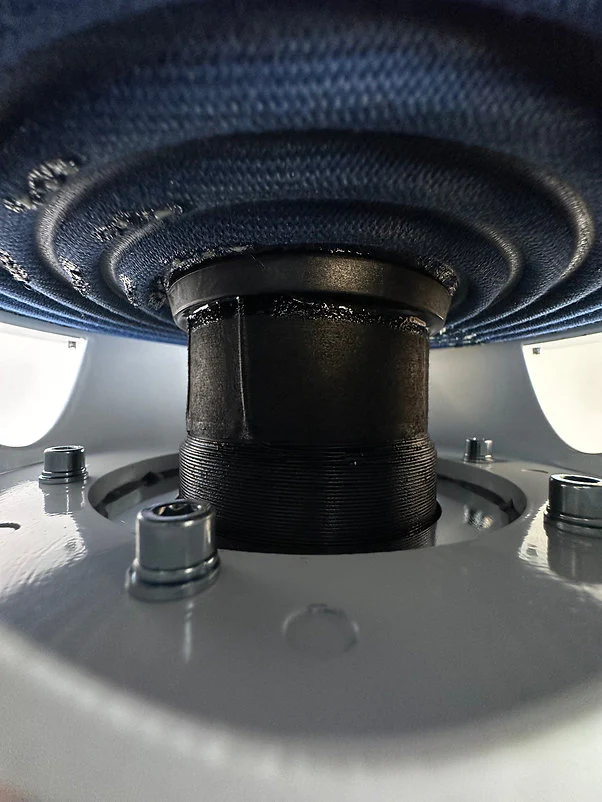

Voice Coil	3-inch 4 Layer (25% Longer than V1)

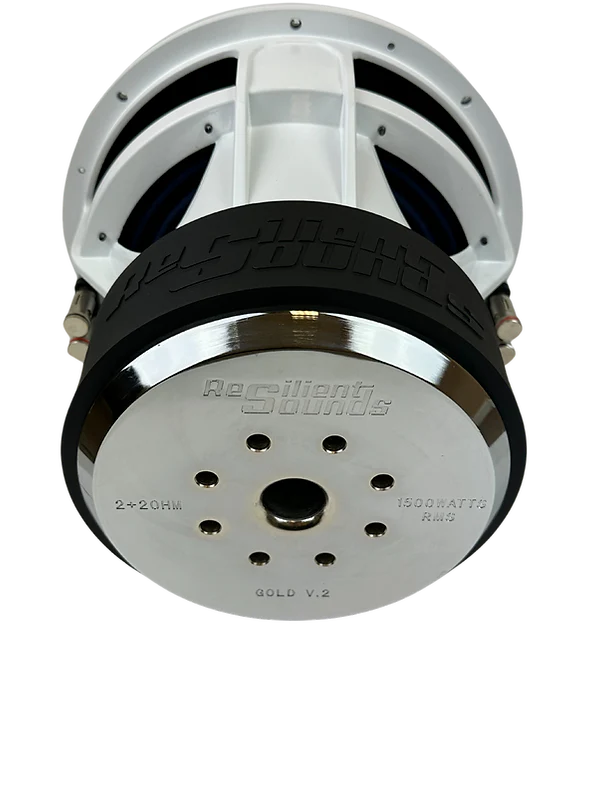

Motor Structure	Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot

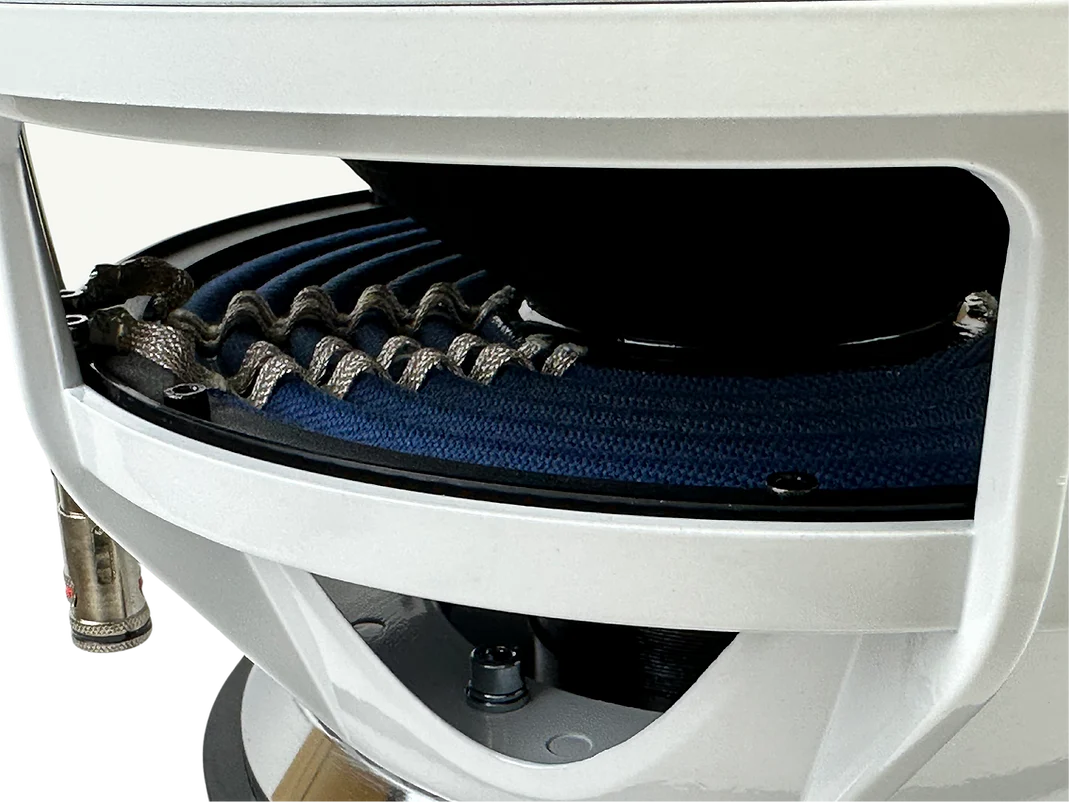

Surround / Spider	NEW High Roll Tooled Surround, 10" Spider Pack with Dual Sewn Leads
Frame/Basket	Cast Aluminum Frame
Terminals	4 Ga Push Terminals
Gasket	Aluminum Gasket
Shorting Ring	Aluminum
Available Sizes	10", 12", 15", and 18"



RECOMMENDED ENCLOSURE SPECIFICATIONS

Internal Volume (Cubic Ft)	1.75 - 2.75 CU FT
Tuning Frequency	29 - 33 HERTZ
Port Area	12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT
Mounting Depth	9.125 INCHES
Cutout Diameter	11.175 INCHES
Displacement	0.20 CU FT
Outside Diameter	12 5/32 INCHES
