Unmatched Scale and Sheer Power in an 18-Inch Driver

The Resilient Sounds PLATINUM V2 18" D2 is the ultimate subwoofer for maximum scale and output, combining an extreme 18-inch cone area with top-tier motor technology. Conservatively rated at a crushing 2,500W RMS (5,000 Watts Peak), this driver is built around a 13% larger motor assembly and a 20% longer 3-inch 8-layer voice coil, resulting in a dramatic increase in motor force (up to 50% more BL²/Re than the V1). The Dual 2 Ohm impedance allows for flexible wiring to 1 Ohm or 4 Ohm final loads. With a massive 35mm XMAX, a durable 10-inch spider pack, and a stiff carbon fiber cone, this 18-inch Platinum V2 is engineered for the highest demands of output and clarity.



TECHNICAL SPECIFICATIONS

Specification	Detail
Model	Platinum 18 V2
Nominal Impedance	Dual 2 Ohm (D2)
RMS Power Handling (Conservative)	2,500 Watts
Peak Power Handling	5,000 Watts
Maximum Excursion (XMAX)	35MM
Voice Coil	3-inch 8 Layer (20% Longer than V1)

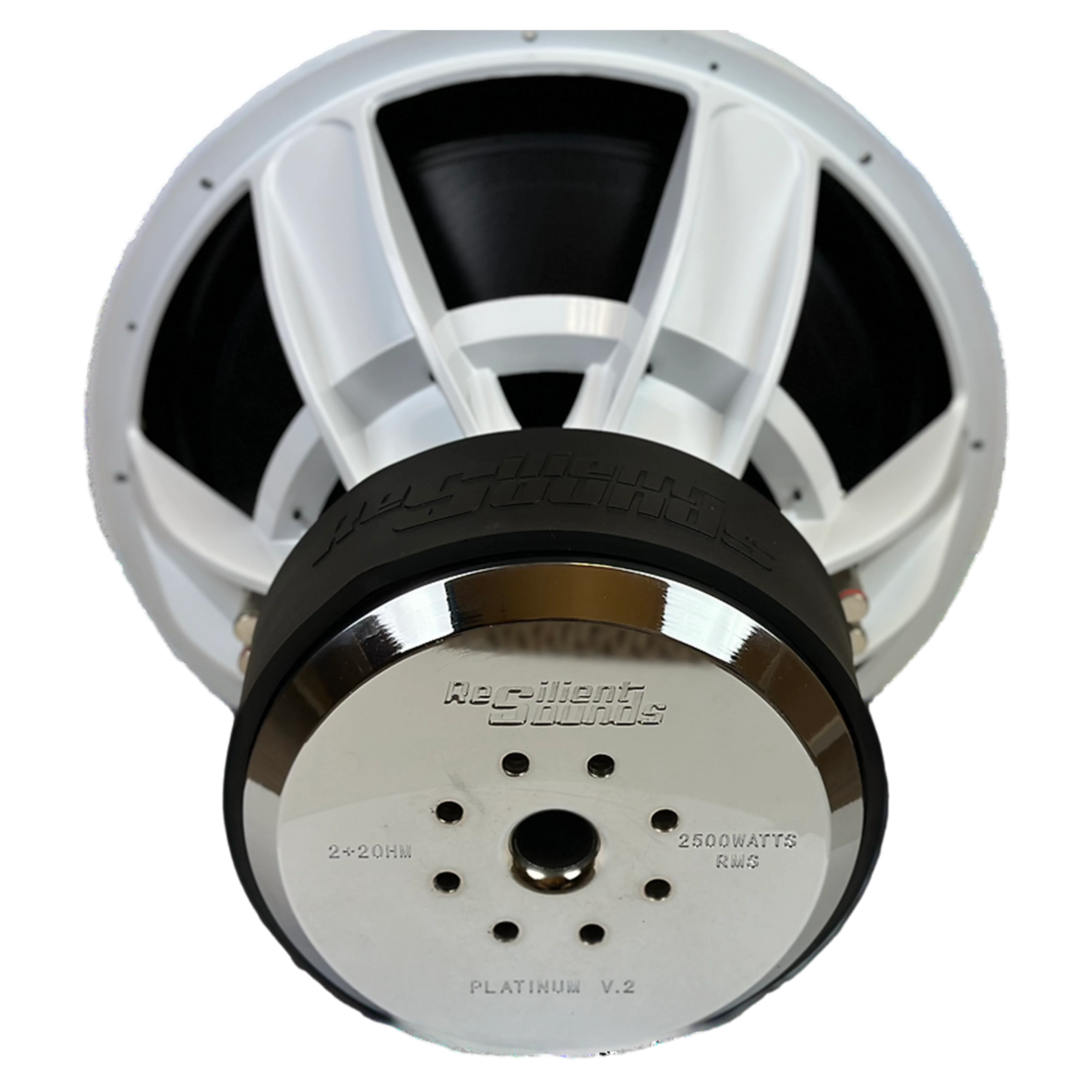

Motor Structure	13% Larger Motor, XL Triple Stacked

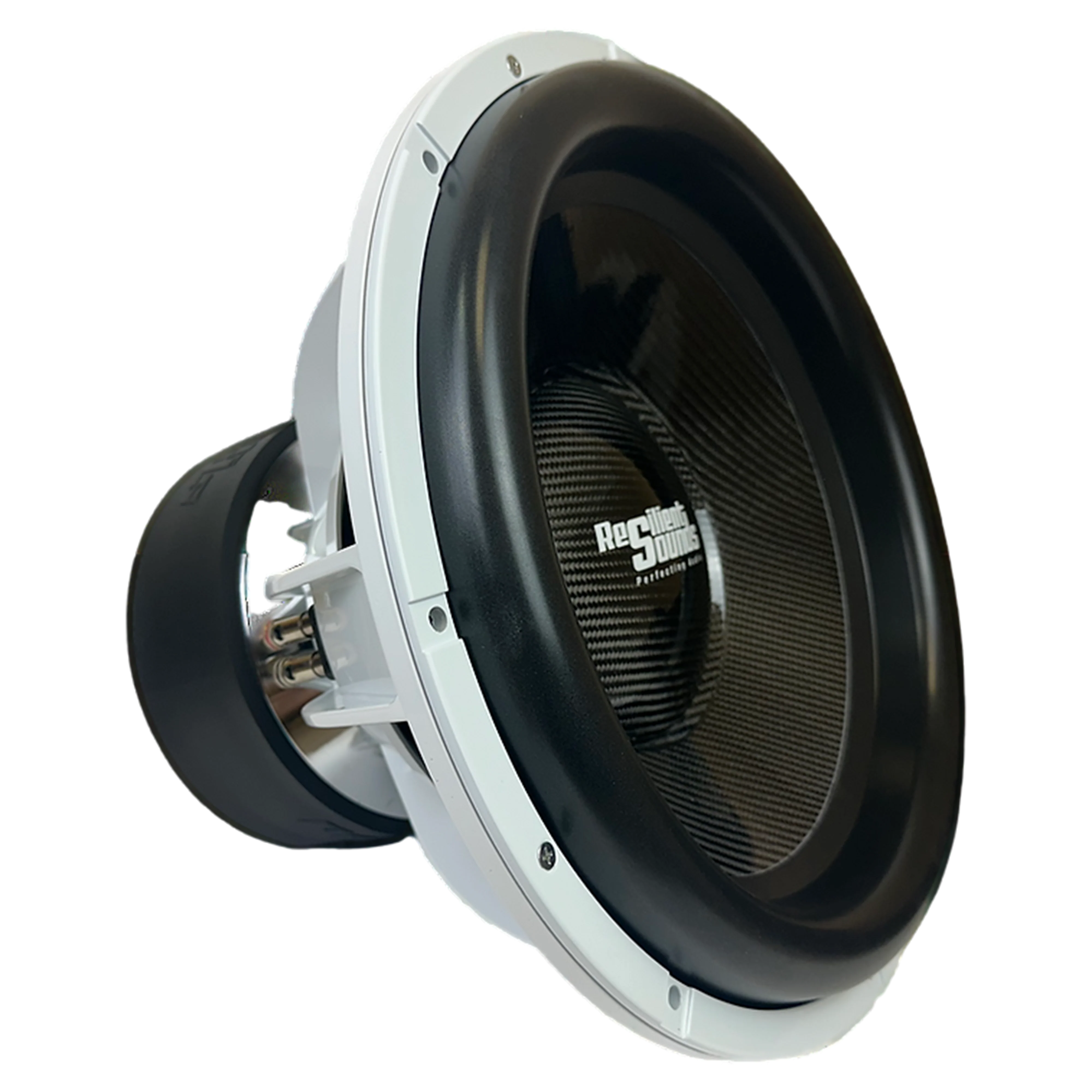

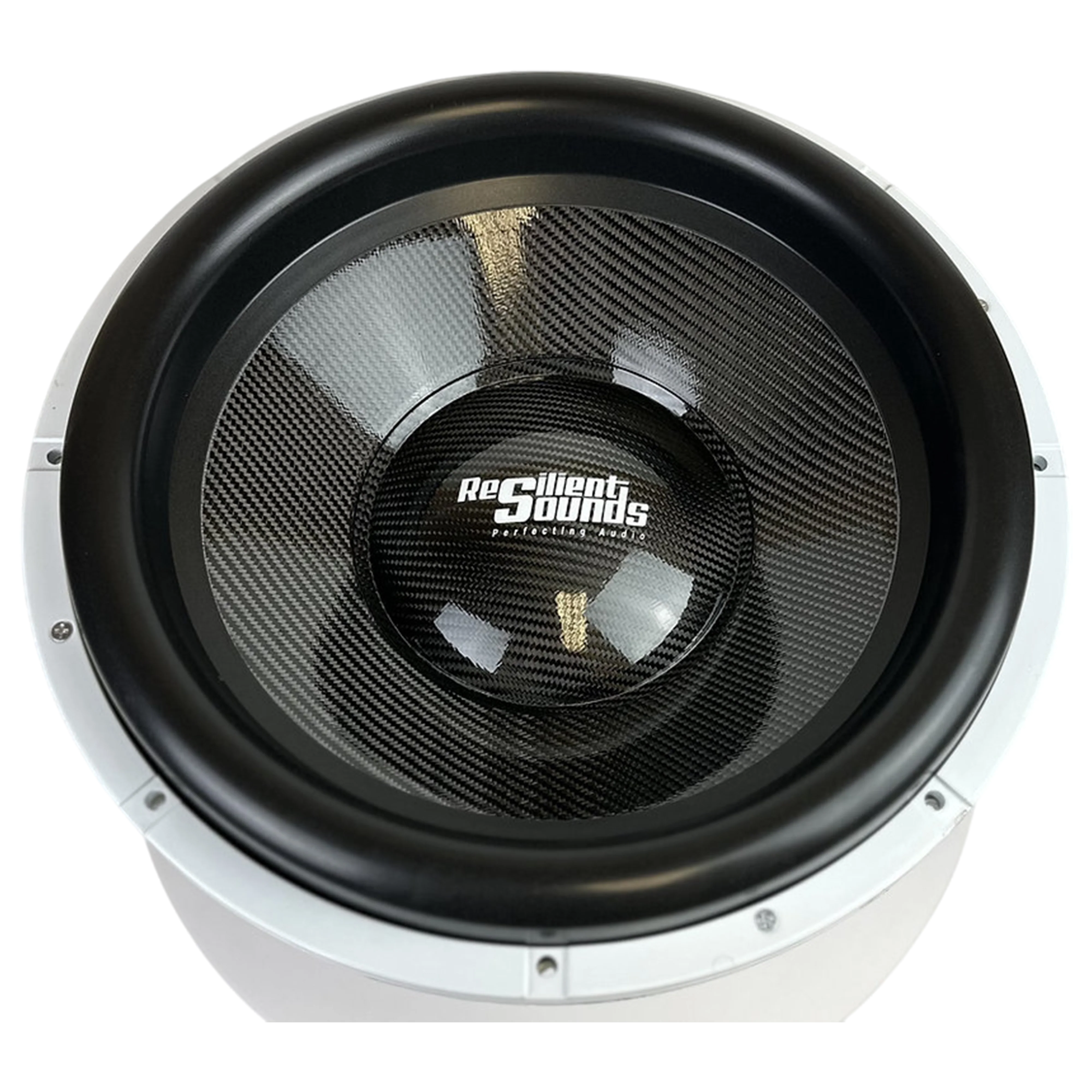

Cone / Dust Cap	Carbon Fiber
Surround	New High Roll Tooled Surround

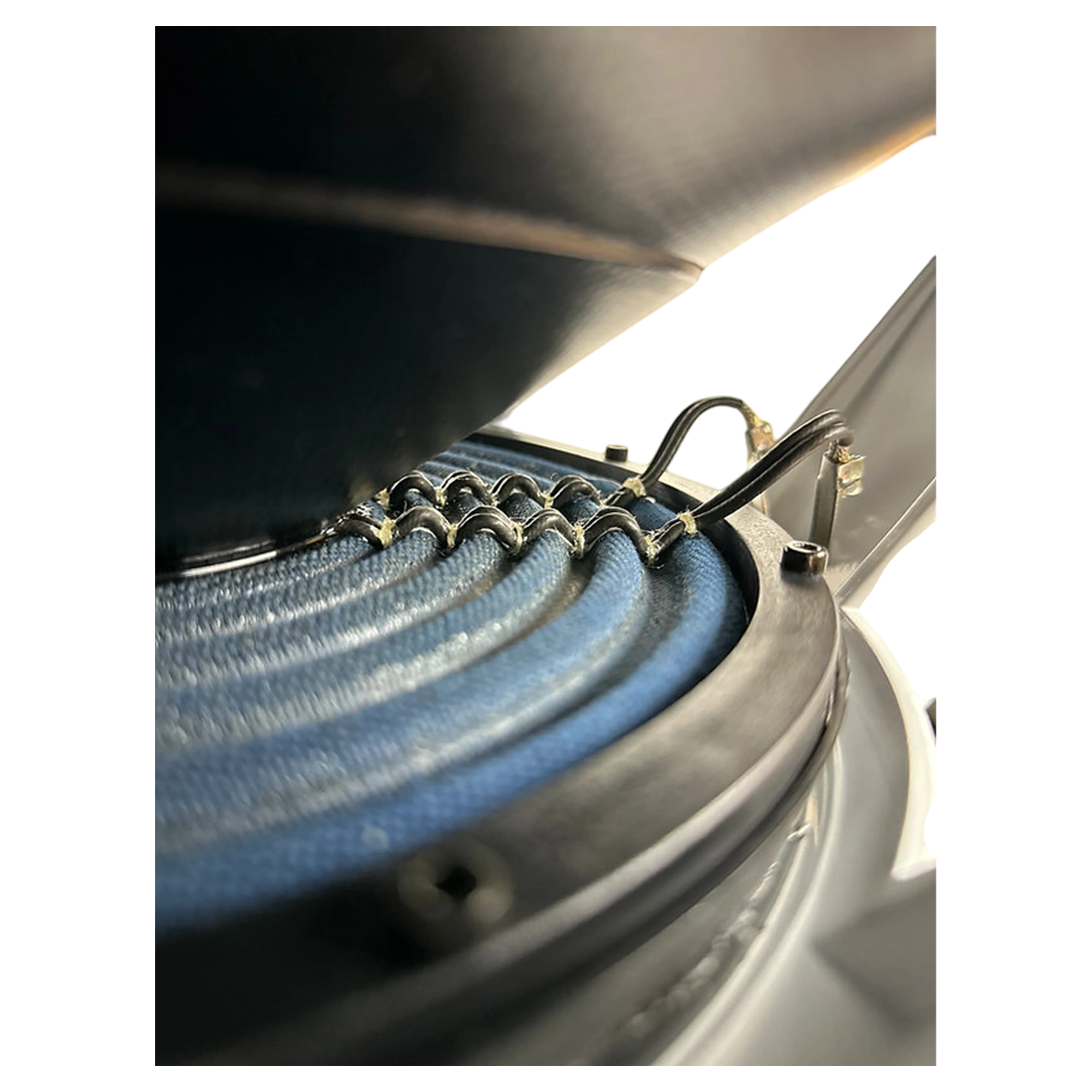

Spider / Leads	10" Spider Pack with Insulated Dual Leads

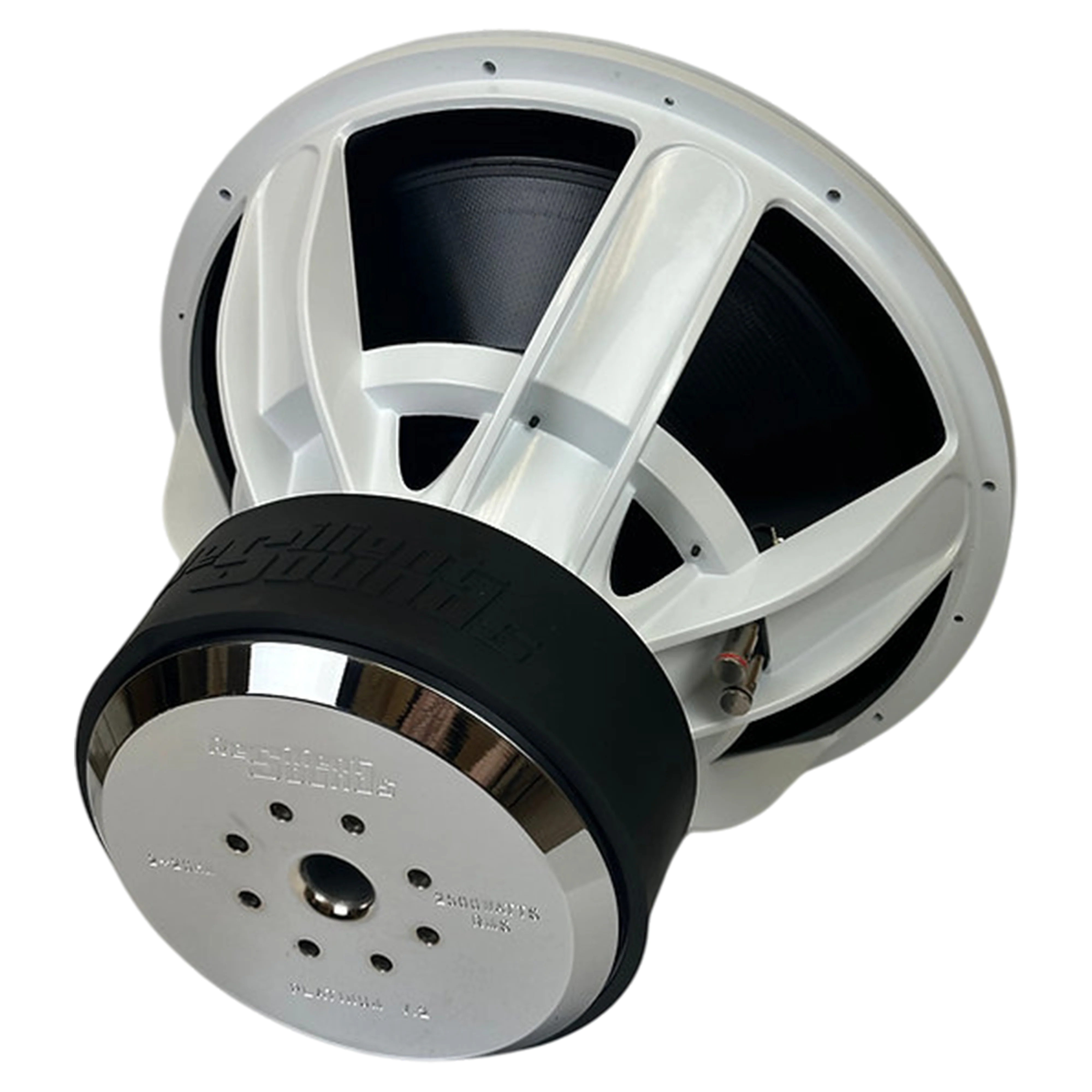

Frame/Basket	Cast Aluminum Frame



RECOMMENDED ENCLOSURE SPECIFICATIONS

Internal Volume (Cubic Ft)	4 - 6 CU FT
Tuning Frequency	28 - 33 HERTZ
Port Area	12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT
Mounting Depth	12.5 INCHES
Cutout Diameter	16.93 INCHES
Displacement	0.33 CUBIC FT
